Import Users from AD/LDAP

ZTAA supports integration with various Identity and Access Management (IAM) services, such as Active Directory (AD), LDAP, and Azure Active Directory. Through the Directory Sync feature, organizations can onboard multiple users efficiently by syncing from their existing identity management systems.

ZTAA can also be configured to use Active Directory as the Primary mode for authentication.

Note: Before syncing users from AD, ensure that the AD server is reachable via the configured Gateway.

Prerequisites

  • A ZTAA Gateway must be installed in the same subnet as the AD/LDAP server.
  • Required AD/LDAP credentials and network details must be available.

Steps to Import Users via AD Authentication Profile Sync

  1. Navigate to the Directory Sync Profile tab under the Identity Management section.

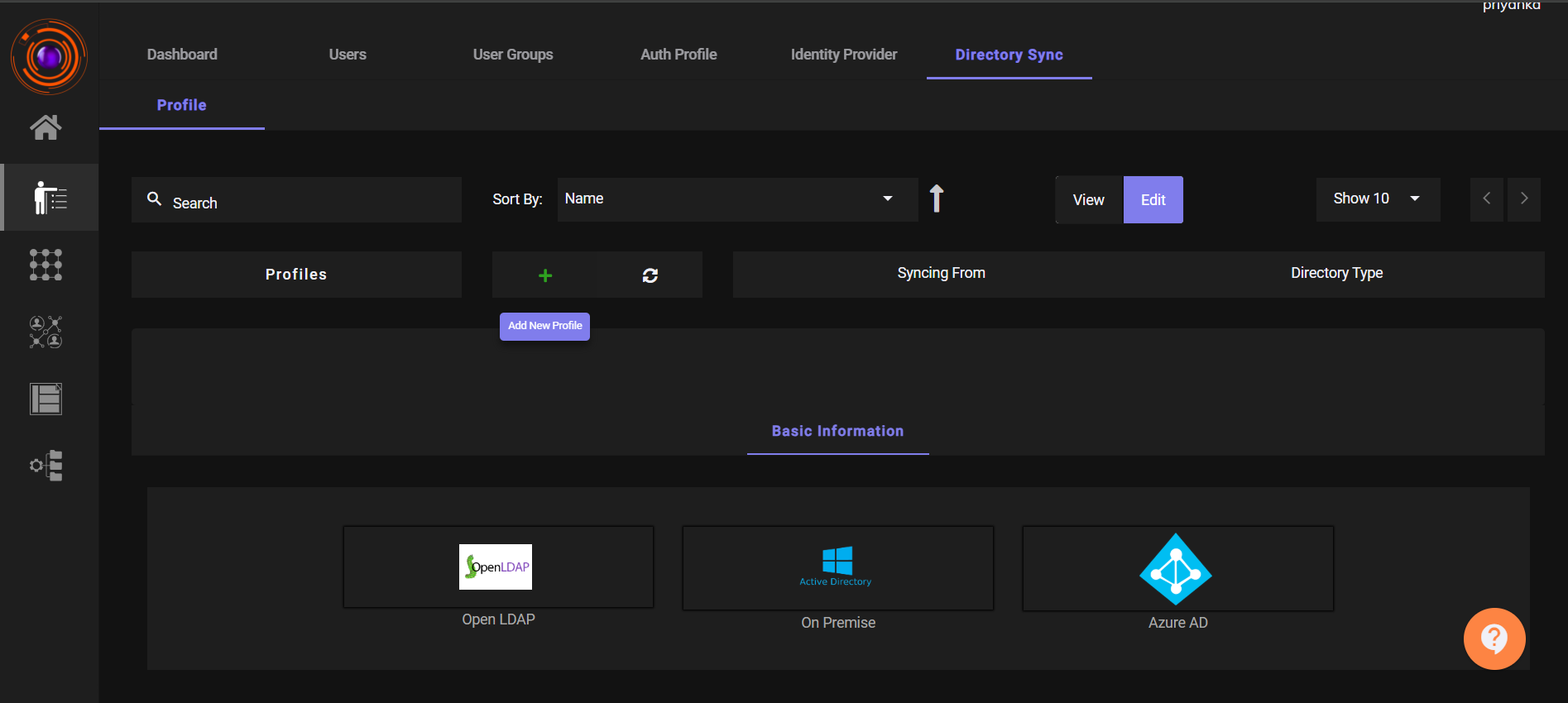

  2. Click the "Add New" button.

  3. Click Active Directory (On Premise)

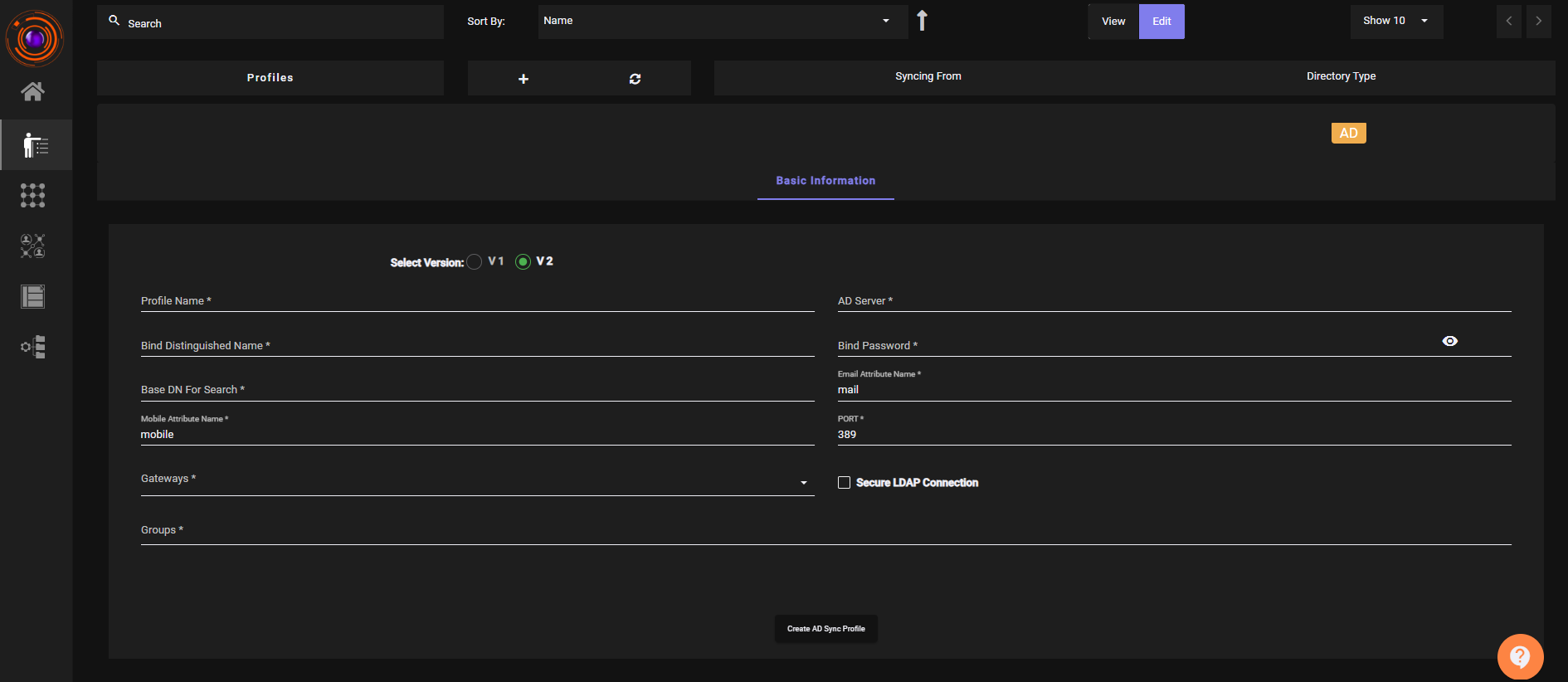

  4. Fill in the required details in the form.

  5. Click on "Create AD Sync Profile" to save the configuration.

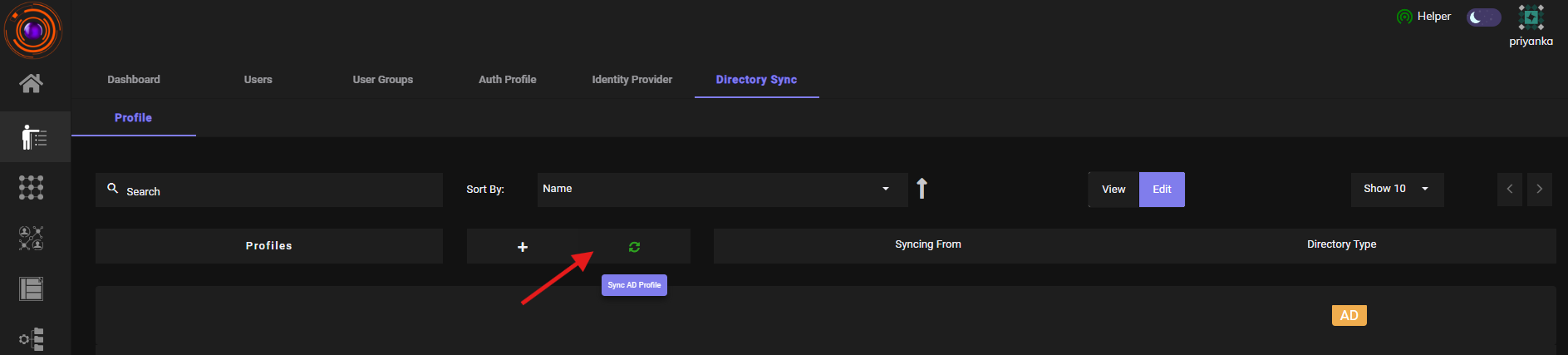

  6. Now, Click on Sync.

  7. User's are now successfully imported via Active Directory (AD).

Terminologies & Configuration Parameters

Field Description
Bind Distinguished Name The Bind DN is the credential used to authenticate against the LDAP directory, comes with a password associated with it. While specifying it you are using that object security access to go through the LDAP tree.
Example: CN=Administrator,CN=Users,DC=instalocal,DC=in
Bind Password Password for the above Bind DN user. The login/password of an LDAP user that can access base DN.
Base DN for Search The point from where a server will search for users.
Example: DC=instalocal,DC=in
Email Attribute Name Attribute used to fetch user email. Common value: mail
Mobile Attribute Name Attribute used to fetch user mobile number or telephoneNumber. Common values: mobile, telephoneNumber
LDAP Groups Groups are used to collect user accounts, computer accounts, and other groups into manageable units.
Example: CN=Demogroup,OU=Techteam,DC=instalocal,DC=in
LDAP URL String used to encapsulate the address and port of a directory server, the DN of an entry within that server, or the criteria for performing a search within that server.
Example: ldap://10.2.0.5

Important: All LDAP entries such as Bind DN, Group Name, etc., must be referred by their Distinguished Name (DN) format.

Steps to Import Users via Open LDAP

  1. Navigate to the Directory Sync Profile tab under the Identity Management section.
  2. Click the "Add New" button.

  3. Click Open LDAP

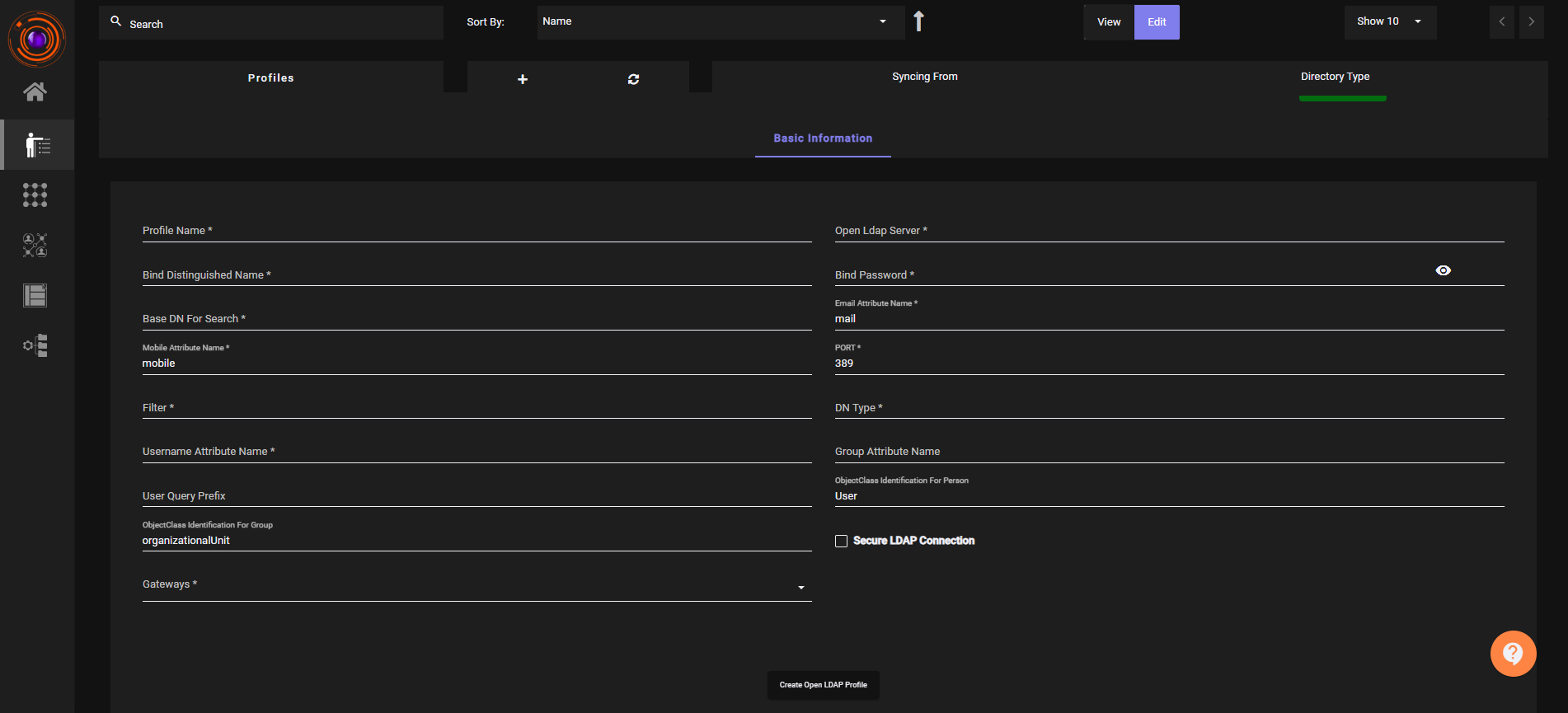

  4. Fill in the required details in the form.

  5. Click on "Create Open LDAP Profile" to save the configuration.

  6. Now, Click on Sync.

  7. User's are now successfully imported via Open LDAP.

By leveraging ZTAA's AD/LDAP sync capability, IT teams can onboard and manage users efficiently with centralized control. This reduces manual effort and ensures consistency in access management across the organization.
